GO Regulator 過濾器 F4 102120 / F6K 101700 - GO Regulator 緊湊型316 SS結構過濾器，額定工作壓力高達6000 psig。可用的過濾孔隙率為10-300微米。該過濾器設計用作標準的在線過濾器，或者可以很容易地擰入壓力調節(jié)器或閥體中以進行入口保護。

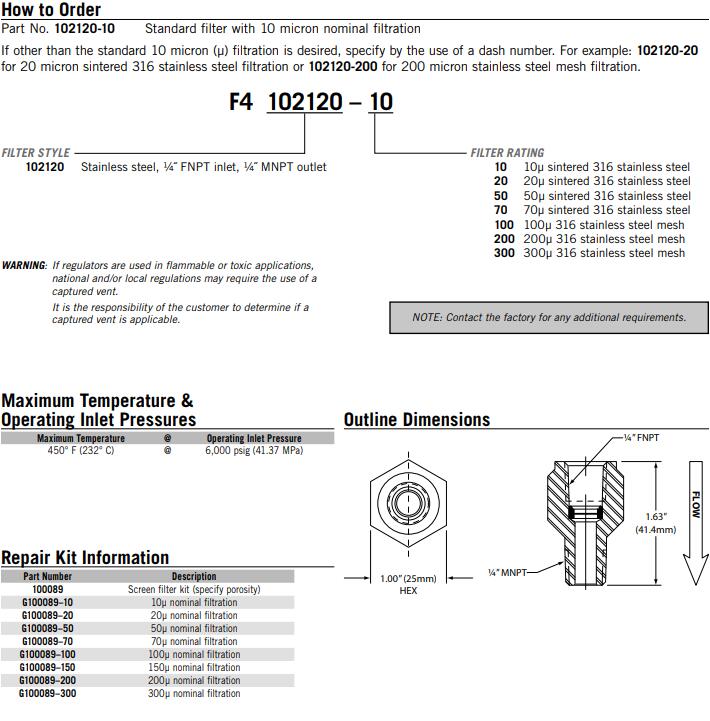

GO Regulator 過濾器 F4 102120

Features & Specifi cations
• Compact size
• Economical design
• Easily changed fi lter elements
• Stainless steel body (316 series) with PTFE seals
• Nominal micron (μ) ratings of fi ltration available:
10μ sintered 316 stainless steel
20μ sintered 316 stainless steel
50μ sintered 316 stainless steel
70μ sintered 316 stainless steel
100μ 316 stainless steel mesh
200μ 316 stainless steel mesh
300μ 316 stainless steel mesh
• Pressures up to 6,000 psig (41.37 MPa)

GO Regulator 過濾器 F6K 101700

Features & Specifi cations
• Nominal ratings of fi ltration available:
2–5μ sintered
5–9μ sintered
10–15μ sintered
20–30μ sintered
40–55μ sintered
100μ 316 stainless steel mesh
150μ 316 stainless steel mesh
• Available with optional bypass

101700 In-line, stainless steel, ¼? FNPT connections
101830 1/8? NPT bypass, stainless steel, ¼? FNPT connections
101850 ¼? FNPT bypass, stainless steel, ¼? FNPT connections
102980 In-line, MONEL®, ¼? FNPT connections*
102981 1/8? FNPT, bypass, MONEL®, ¼” FNPT connections*
102982 ¼? FNPT bypass, MONEL®, ¼? FNPT connections*
107476 In-line, stainless steel, ¼? MNPT outlet, ¼? FNPT inlet
107519 1/8? bypass, stainless steel, ¼? MNPT outlet, ¼? FNPT inlet
107518 ¼? bypass, stainless steel, ¼? MNPT outlet, ¼? FNPT inlet


GO Regulator 過濾器 F4 102120
